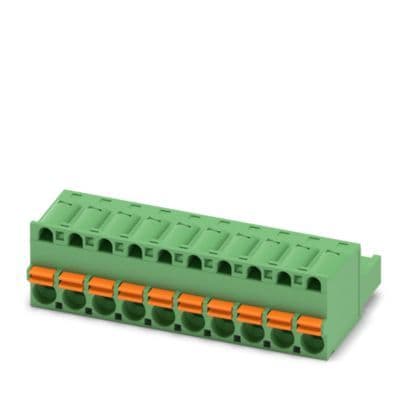

12A, 250V barrier strip terminal block featuring screwless termination and a 5mm pitch. This green, single-row, single-deck component supports 10 positions and accommodates wire gauges from 12AWG to 26AWG. It boasts a UL94 V-0 flammability rating and is RoHS compliant, with approvals including CSA, VDE, cULus, CB, and EAC. Designed for free-hanging, cable mounting, this straight-orientation terminal block offers a maximum current rating of 12A.
Voltage300V
Current10A
Voltage Rating250V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1910432 technical specifications.
General
| Approvals | CSA, VDE, cULus, CB, EAC |
| Color | Green |
| Contact Material | Tin |
| Contact Plating | Tin |
| Current | 10A |
| Current Rating | 12A |
| Flammability Rating | UL94 V-0 |

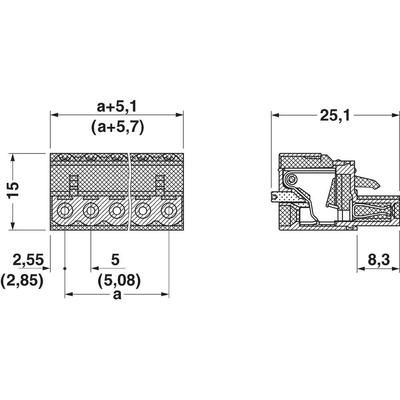

| Height | 25.6mm |
| Housing Color | Green |
| Lead Free | Lead Free |
| Length | 15mm |
| Max Current Rating | 12A |
| Mount | Free Hanging, Cable |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Number of Positions Per Level | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 5mm |
| RoHS Compliant | Yes |
| Series | COMBICON FKC |
| Termination | Screwless |
| Voltage | 300V |
| Voltage Rating | 250V |
| Weight | 1.323lb |
| Width | 50.1mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1910432 Datasheet
Download the complete datasheet for Phoenix Contact 1910432 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
