Two-position, single-level terminal block with a 5.08mm pitch for cable mounting. Features screwless termination, tin-plated copper contacts, and a black housing. Rated for 12A current and 250V voltage, accepting wire gauges from 12AWG to 30AWG. Dimensions include 15mm height, 27.2mm width, and 10.16mm length. RoHS compliant and supplied in bulk packaging.
Voltage300V
Current15A
Voltage Rating250V
Current Rating12A
Quick Jump:
Technical Specifications
Phoenix Contact 1921625 technical specifications.
General
| Color | Black |
| Contact Material | Tin |
| Contact Plating | Tin |
| Current | 15A |
| Current Rating | 12A |
| Height | 15mm |
| Housing Color | Black |
| Length | 10.16mm |
| Mount | Free Hanging |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Number of Positions Per Level | 2 |
| Number of Rows | 1 |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 0.2inch |
| RoHS Compliant | Yes |
| Series | COMBICON FRONT-MSTB |
| Termination | Screwless |
| Voltage | 300V |
| Voltage Rating | 250V |
| Width | 27.2mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1921625 Datasheet
Download the complete datasheet for Phoenix Contact 1921625 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

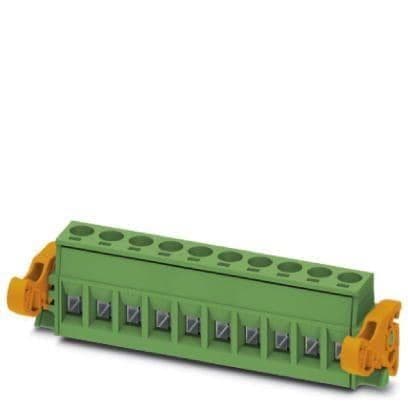

Product Images
