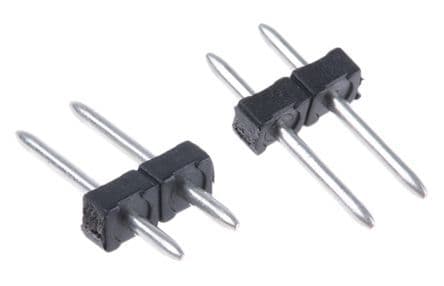

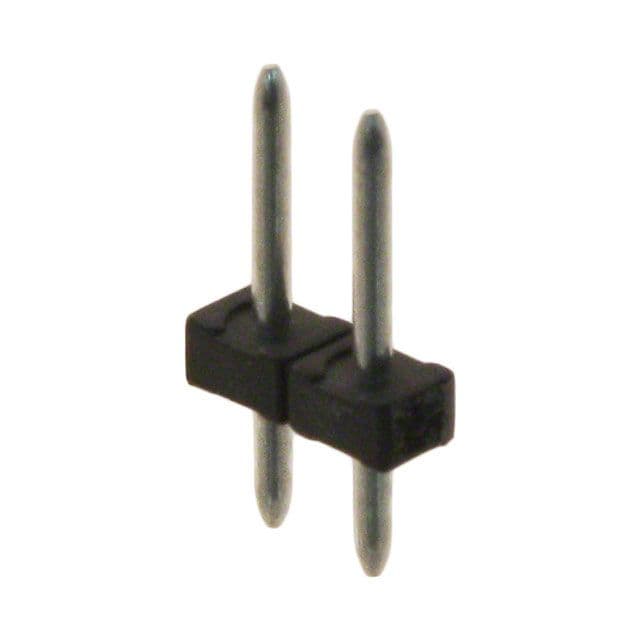

Strip terminal block featuring a 3.5mm pitch and 2 positions per level, designed for through-hole mounting with solder termination. This straight, single-row, single-deck component boasts a 10A current rating and a 160V voltage rating, with a maximum current rating of 8A. Constructed with a black nylon housing and copper contacts plated with tin, it offers UL94 V-0 flammability and is RoHS compliant. Approvals include UL and EAC.
Voltage300V
Current10A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1945096 technical specifications.
General
| Approvals | UL, EAC |
| Color | Black |
| Contact Material | Copper |
| Contact Plating | Tin |
| Current | 10A |
| Current Rating | 8A |
| Depth | 2.8mm |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Current Rating | 8A |
| Mount | Through Hole |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Number of Positions Per Level | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 3.5mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PST |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 160V |
| Voltage Rating (AC) | 160V |
| Weight | 0.009171oz |
| Width | 3.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1945096 Datasheet
Download the complete datasheet for Phoenix Contact 1945096 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
