Unshrouded header with 13 positions and a 3.5mm pitch, featuring straight orientation for through-hole mounting. This component offers a 300V voltage rating and a 10A current rating, with tin contact plating and a black housing. Constructed with UL94 V-0 flammability, it is lead-free and RoHS compliant.
Voltage300V
Current10A
Voltage Rating160V
Current Rating8A
Quick Jump:
Technical Specifications
Phoenix Contact 1945203 technical specifications.
General
| Color | Black |
| Contact Plating | Tin |
| Current | 10A |
| Current Rating | 8A |
| Depth | 2.8mm |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 3.5mm |
| Max Current Rating | 12A |
| Mount | Through Hole |
| Number of Contacts | 13 |
| Number of Levels | 1 |
| Number of Positions | 13 |
| Number of Positions Per Level | 13 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 3.5mm |
| RoHS Compliant | Yes |
| Series | PST |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 160V |
| Weight | 0.047973oz |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1945203 Datasheet
Download the complete datasheet for Phoenix Contact 1945203 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

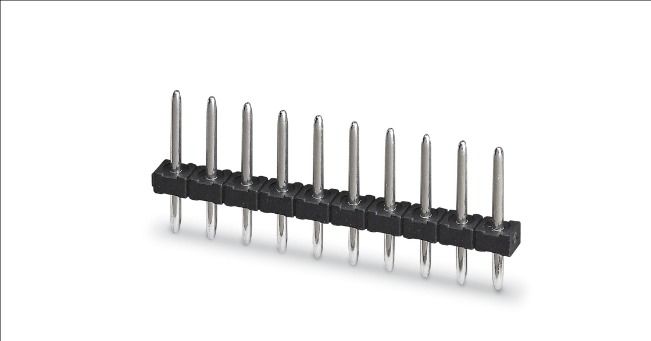

Product Images
