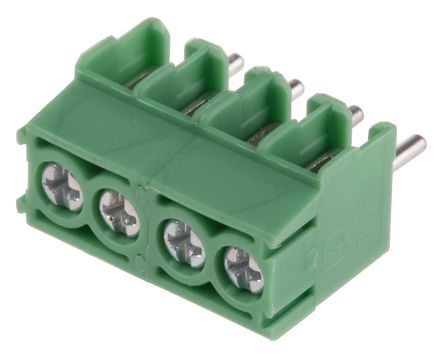

Barrier strip terminal block featuring a 3.5mm pitch and 4 positions per level, supporting 16-26 AWG wire gauges. This straight, through-hole mount component offers a 17.5A maximum current rating and a 160V voltage rating, with a 10A current and 300V voltage rating. Constructed with green nylon insulation and tin-plated contacts, it boasts UL94 V-0 flammability and is RoHS compliant. Approvals include UL and EAC.
Voltage300V
Current10A
Voltage Rating160V
Current Rating17.5A
Quick Jump:
Technical Specifications
Phoenix Contact 1984633 technical specifications.
General
Approvals
UL, EAC
Color
Green
Contact Material
Tin
Current
10A
Current Rating
17.5A
Depth
7.6mm
Flammability Rating
UL94 V-0
Height
9mm
Housing Color
Green
Insulation Material
Nylon
Lead Free
Lead Free
Length
7.6mm
Material
Nylon
Max Current Rating
17.5A
Max Supply Voltage
160V
Mount
Through Hole
Number of Circuits
4
Number of Contacts
4
Number of Levels
1
Number of Poles
4
Number of Positions
4
Number of Positions Per Level
4
Number of Rows
1
Number of Ways
4
Orientation
Straight
Package Quantity
250
Packaging
Bulk
Pitch
3.5mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
COMBICON PT
Termination
Solder
Voltage
300V
Voltage Rating
160V
Weight
0.065962oz
Width
14mm
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
16AWG
Wire/Cable Gauge
16AWG
Compliance
RoHS
Compliant
