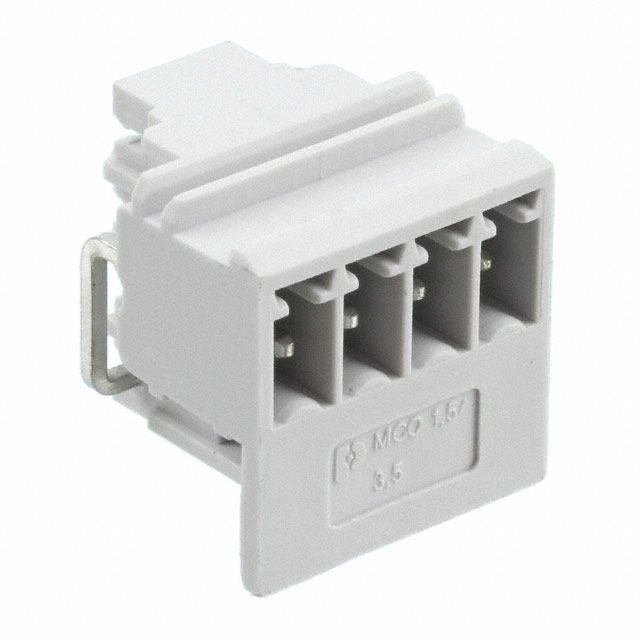

This is a grey shrouded header with 4 positions, rated for 8A and 300V. It is designed for through hole mounting and has a flammability rating of UL94 V-0. The header is made of tin with a tin plating and is RoHS compliant. It is packaged in bulk quantities of 50.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 2278377 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Grey |
| Contact Material | Tin |
| Contact Plating | Tin |
| Current | 8A |
| Current Rating | 8A |
| Flammability Rating | UL94 V-0 |
| Height | 14.95mm |
| Length | 14.55mm |
| Mount | Free Hanging, Through Hole |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Number of Positions Per Level | 4 |
| Number of Rows | 1 |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 0.138inch |
| RoHS Compliant | Yes |
| Series | MCO |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 160V |
| Width | 15.3mm |
| RoHS | Compliant |
