12-position, 2-row terminal block with screw termination. Features a 32A current rating and 300V voltage rating, accommodating wire gauges from 10AWG to 26AWG. Constructed with a grey nylon housing and copper contacts, this general-purpose terminal block offers panel, chassis, or cable mounting. It is lead-free, RoHS compliant, and carries UL94 V-2 flammability rating, with CSA, cULus, UL, and EAC approvals.
Voltage300V
Current30A
Voltage Rating300V
Current Rating32A
Quick Jump:
Technical Specifications
Phoenix Contact 2716062 technical specifications.
General
| Approvals | CSA, cULus, UL, EAC |
| Color | Grey |
| Contact Material | Copper |
| Current | 30A |
| Current Rating | 32A |
| Flammability Rating | UL94 V-2 |
| Height | 24mm |
| Housing Color | Grey |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 22mm |
| Material | Nylon |
| Max Current Rating | 32A |
| Mount | Panel, Chassis, Cable |
| Number of Circuits | 6 |
| Number of Contacts | 12 |
| Number of Poles | 6 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Number of Ways | 12 |
| Number of Wire Entries | 12 |
| Package Quantity | 50 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | G |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Weight | 1.48327oz |
| Width | 52mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Gauge | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 2716062 Datasheet
Download the complete datasheet for Phoenix Contact 2716062 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

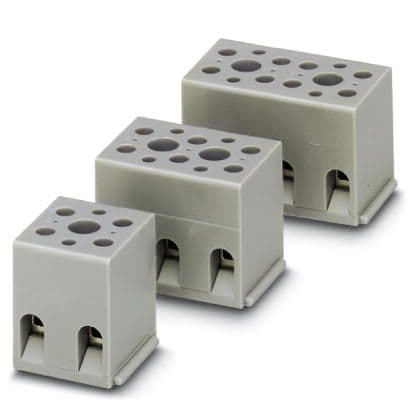

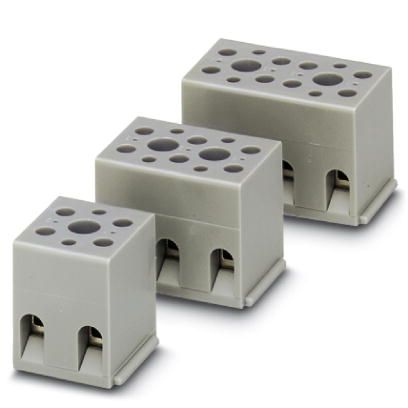

Product Images
