Female D-subminiature connector with 9 positions and 2 rows, featuring a straight orientation and screw termination. This shielded, free-hanging connector utilizes a copper alloy contact material for signal transmission and has a current rating of 1A and a voltage rating of 60V. Constructed with a metal body and case, it operates within a temperature range of -20°C to 75°C. The component is RoHS compliant and UL approved.
PackageMetal
Voltage Rating60V
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Phoenix Contact 2761499 technical specifications.
General
| Approvals | UL |
| Body Material | Metal |
| Package/Case | Metal |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating | 1A |
| Depth | 16mm |
| Features | Shielded |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 56.4mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -20°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.77mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SUBCON |
| Termination | Screw |
| Voltage Rating | 60V |
| Width | 16mm |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 2761499 Datasheet
Download the complete datasheet for Phoenix Contact 2761499 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

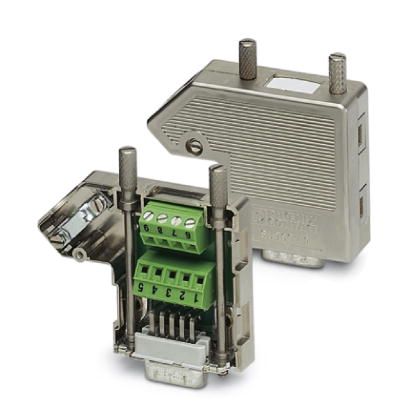

Product Images
