Right-angle, female D-subminiature module with 15 signal contacts. Features a metal body and case, copper alloy contacts, and a 1A current rating. Operates within a -20°C to 75°C temperature range, offering 50 mating cycles. This shielded connector is lead-free and RoHS compliant, with screw termination and a 60V voltage rating.
PackageMetal
Voltage Rating60V
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Phoenix Contact 2761596 technical specifications.
General
| Body Material | Metal |
| Package/Case | Metal |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating | 1A |
| Depth | 16mm |
| Features | Shielded |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 6mm |
| Mating Cycles | 50 |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -20°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.77mm |
| Plating | Metal |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SUBCON |
| Shell Material | ACRYLONITRILE BUTADIENE STYRENE |
| Termination | Screw |
| Voltage Rating | 60V |
| Weight | 2.402157oz |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 2761596 Datasheet
Download the complete datasheet for Phoenix Contact 2761596 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

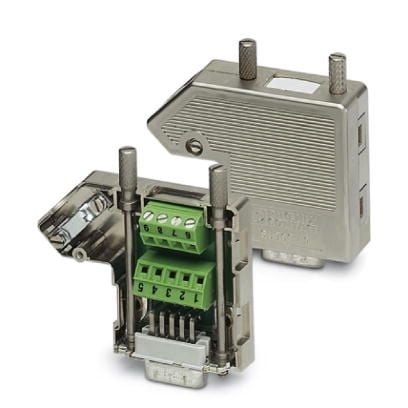

Product Images
