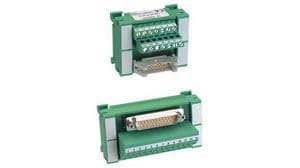

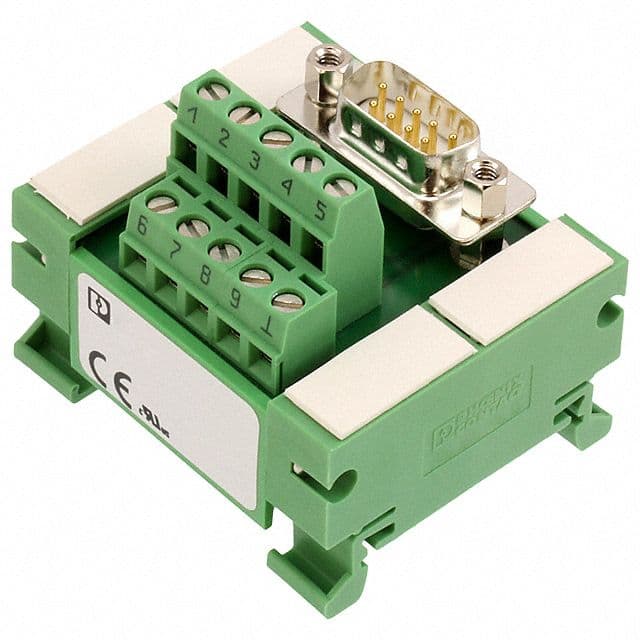

9-position, straight, male ZIF/LIF flexible flat cable/flexible printed circuit connector module with a 2.5A current rating and 125V voltage rating. Features screw termination, DIN rail mounting, and a temperature range of -20°C to 50°C. Suitable for wire gauges from 16AWG to 26AWG. Approvals include cULus.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 2962777 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | cULus |
| Package/Case | Module |
| Color | Green |
| Contact Current Rating | 2.5A |
| Current Rating | 2.5A |
| Depth | 54mm |
| Gender | Male |
| Height | 42mm |
| Lead Free | Lead Free |
| Length | 2.13inch |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -20°C |
| Mount | DIN Rail |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Orientation | Straight |
| Packaging | Bulk |
| Series | VARIOFACE, UM |
| Termination | Screw |
| Voltage Rating | 125V |
| Weight | 1.367219oz |
| Width | 1.65inch |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 16AWG |
| RoHS | Compliant |
