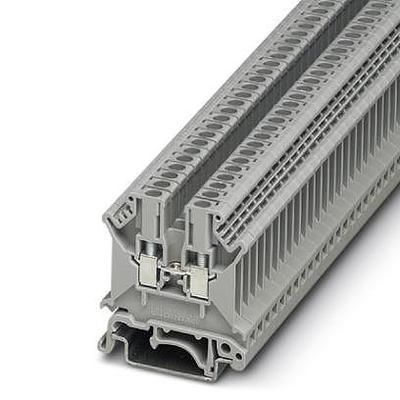

Feed-through terminal block with 2 positions and 2 poles, designed for cable mounting. Features a 24A maximum current rating and 800V voltage rating, with a 600V operational voltage. Constructed with a grey nylon insulation material and a UL94 V-2 flammability rating. Accommodates wire gauges from 12AWG to 24AWG with screw termination. Approvals include CSA, cULus, UL, KEMA, and EAC, with RoHS compliance.
Voltage600V
Current20A
Voltage Rating800V
Current Rating32A
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Phoenix Contact 3001501 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Phoenix Contact 3001501 technical specifications.
General
| Approvals | CSA, cULus, UL, KEMA, EAC |
| Color | Grey |
| Current | 20A |
| Current Rating | 32A |
| Depth | 5.2mm |
| Flammability Rating | UL94 V-2 |
| Height | 47mm |
| Housing Color | Grey |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 42.5mm |
| Max Current Rating | 24A |
| Max Supply Voltage | 800V |
| Mount | Cable |
| Number of Circuits | 1 |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Package Quantity | 50 |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CLIPLINE UK |
| Terminal Width | 5.2mm |
| Termination | Screw |
| Voltage | 600V |
| Voltage Rating | 800V |
| Weight | 0.246353oz |
| Width | 5.2mm |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3001501 Datasheet
Download the complete datasheet for Phoenix Contact 3001501 to view detailed technical specifications.
