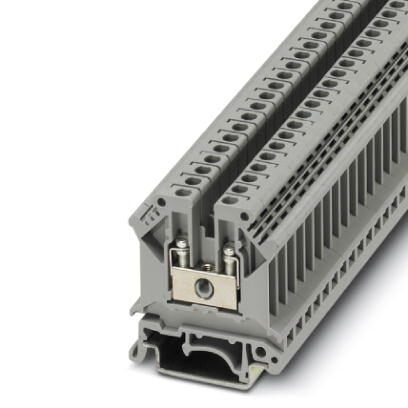

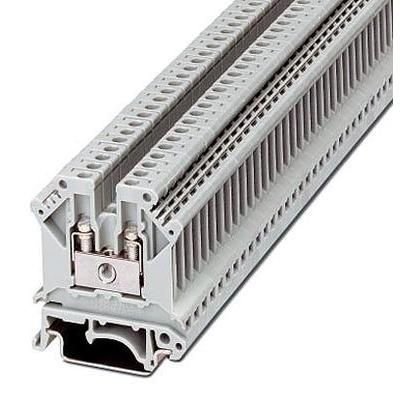

Modular terminal block for cable mounting, featuring screw termination and a 2-position, 2-row configuration. This connector supports a maximum current of 20A and a voltage rating of 600V, with a maximum supply voltage of 600V. Constructed with a grey nylon housing, it offers a terminal width of 5.2mm and accommodates wire gauges from 12AWG to 28AWG. The component is RoHS compliant and rated UL94 V-2 for flammability.
Voltage600V
Current20A
Voltage Rating800V
Current Rating32A
Quick Jump:
Technical Specifications
Phoenix Contact 3002018 technical specifications.
General
Color
Grey
Current
20A
Current Rating
32A
Depth
5.2mm
Flammability Rating
UL94 V-2
Height
54.5mm
Housing Color
Grey
Insulation Material
Nylon
Lead Free
Lead Free
Length
42.5mm
Max Current Rating
20A
Max Supply Voltage
600V
Mount
Cable
Number of Circuits
1
Number of Contacts
2
Number of Levels
1
Number of Positions
2
Number of Rows
2
Package Quantity
50
Radiation Hardening
No
RoHS Compliant
Yes
Series
CLIPLINE UK
Terminal Width
5.2mm
Termination
Screw
Voltage
600V
Voltage Rating
800V
Weight
0.293127oz
Width
5.2mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 3002018 Datasheet
Download the complete datasheet for Phoenix Contact 3002018 to view detailed technical specifications.
