Feed-through terminal block with 2 positions and straight orientation. Features a 32A current rating and 600V voltage rating, with a 20A current capacity. Constructed with grey nylon insulation and a UL94 V-2 flammability rating. Designed for DIN rail mounting with screw termination, accommodating wire gauges from 12AWG to 28AWG. Approvals include CSA, cULus, UL, and EAC.
Voltage600V
Current20A
Voltage Rating800V
Current Rating32A
Quick Jump:
Technical Specifications
Phoenix Contact 3003017 technical specifications.
General
Approvals
CSA, cULus, UL, EAC
Color
Grey
Current
20A
Current Rating
32A
Flammability Rating
UL94 V-2
Height
54.5mm
Housing Color
Grey
Insulation Material
Nylon
Lead Free
Lead Free
Length
42.5mm
Mount
Through Hole
Number of Circuits
1
Number of Contacts
2
Number of Levels
1
Number of Positions
2
Orientation
Straight
RoHS Compliant
Yes
Series
CLIPLINE UK
Terminal Width
6.2mm
Termination
Screw
Voltage
600V
Voltage Rating
800V
Weight
0.368966oz
Width
6.2mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
12AWG
Wire/Cable Gauge
12AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 3003017 Datasheet
Download the complete datasheet for Phoenix Contact 3003017 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

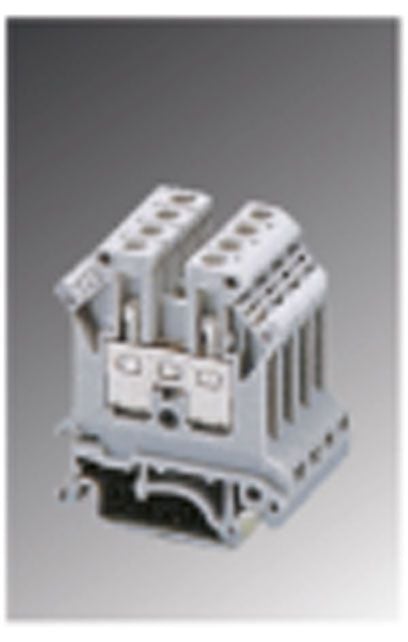

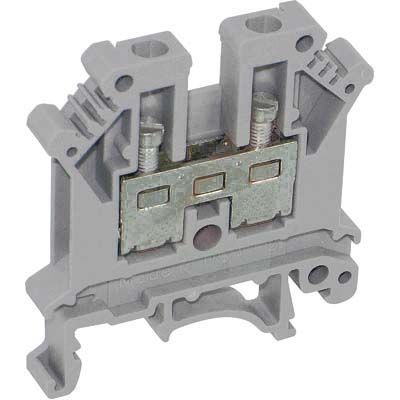

Product Images
