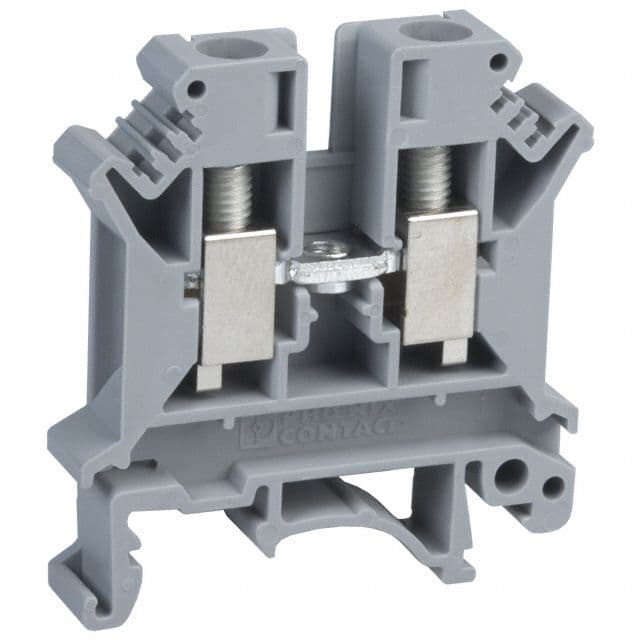

Modular terminal block featuring a 57A current rating and 800V voltage rating. Designed for 10mm² wire gauge, this component offers 2 positions and 2 poles with screw termination. Constructed with copper contacts and a nylon insulator, it boasts a UL94 V-0 flammability rating and is RoHS compliant. Approvals include CSA, cULus, UL, KEMA, and EAC.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 3004524 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CSA, cULus, UL, KEMA, EAC |
| Color | Grey |
| Contact Material | Copper |
| Current | 50A |
| Current Rating | 57A |
| Depth | 8.2mm |
| Flammability Rating | UL94 V-0 |
| Height | 52mm |
| Housing Color | Grey |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Lead Pitch | 8.2mm |
| Length | 42.5mm |
| Max Current Rating | 57A |
| Max Supply Voltage | 800V |
| Number of Circuits | 1 |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CLIPLINE UK |
| Terminal Width | 8.2mm |
| Termination | Screw |
| Voltage | 600V |
| Voltage Rating | 800V |
| Weight | 0.487839oz |
| Width | 8.2mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 8AWG |
| RoHS | Compliant |
