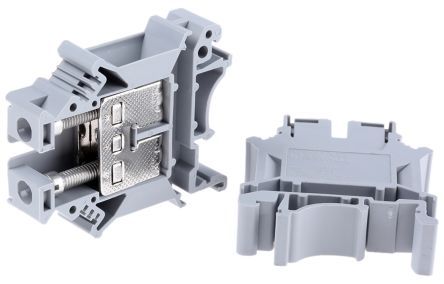

Universal terminal block with 2 positions and screw termination. Features a 76A current rating, 800V voltage rating, and 800V working voltage. Designed for DIN rail mounting with a straight orientation. Insulation material is Nylon with a UL94 V-0 flammability rating. Wire gauge compatibility ranges from 4AWG to 22AWG. Approvals include CSA, cULus, UL, CB, and EAC.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 3006043 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CSA, cULus, UL, CB, EAC |
| Color | Grey |
| Current | 85A |
| Current Rating | 76A |
| Depth | 12.2mm |
| Flammability Rating | UL94 V-0 |
| Height | 54mm |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 42.5mm |
| Max Current Rating | 101A |
| Max Supply Voltage | 800V |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Orientation | Straight |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CLIPLINE UK |
| Terminal Width | 12.2mm |
| Termination | Screw |
| Voltage | 600V |
| Voltage Rating | 800V |
| Voltage Rating (AC) | 800V |
| DC Rated Voltage | 800V |
| Weight | 0.82922oz |
| Width | 12.2mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 4AWG |
| Wire/Cable Gauge | 4AWG |
| Working Voltage | 800V |
| RoHS | Compliant |
