Modular fuse terminal block with 2 positions and 2 poles, rated for 30A and 400V. Features a straight, DIN rail mount orientation with an 8.2mm pitch and 8.2mm terminal width. Constructed from black Nylon insulation material with a UL94 V-0 flammability rating. Supports wire gauges from 10AWG to 28AWG and operates within a temperature range of -30°C to 60°C. Approvals include cULus, UL, CSA, and EAC.
Voltage300V
Current30A
Voltage Rating400V
Current Rating30A
Quick Jump:
Technical Specifications
Phoenix Contact 3036372 technical specifications.
General
| Approvals | cULus, UL, CSA, EAC |
| Color | Black |
| Current | 30A |
| Current Rating | 30A |
| Depth | 8.2mm |
| Flammability Rating | UL94 V-0 |
| Fuse Size | C |
| Height | 51mm |
| Insulation Material | Nylon |
| Length | 86.5mm |
| Material | Nylon |
| Max Current Rating | 30A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage | 400V |
| Mount | DIN Rail |
| Number of Circuits | 1 |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Number of Ways | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 8.2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | ST |
| Terminal Width | 8.2mm |
| Voltage | 300V |
| Voltage Rating | 400V |
| Weight | 0.729466oz |
| Width | 8.2mm |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Gauge | 28AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3036372 Datasheet
Download the complete datasheet for Phoenix Contact 3036372 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

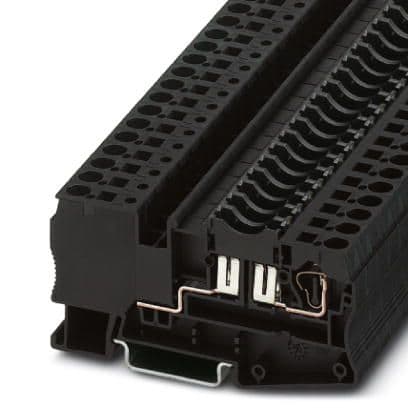

Product Images
