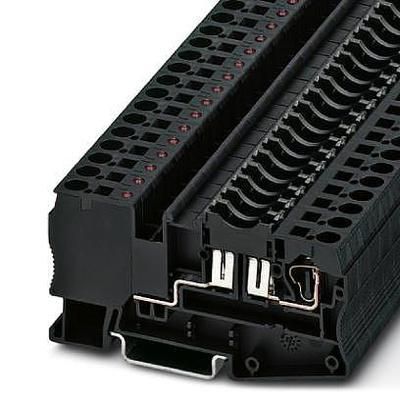

Modular fuse terminal block, 2-position, cable mount, rated for 30A and 400V. Features a 300V voltage rating, 8.2mm terminal width, and accommodates wire gauges from 10AWG to 28AWG. Constructed from black polyamide with UL94 V-0 flammability rating and Nylon insulation. Operating temperature range of -20°C to 60°C. Approvals include cULus, UL, CSA, and EAC.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 3036495 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | cULus, UL, CSA, EAC |
| Package/Case | 300 |
| Color | Black |
| Current | 30A |
| Current Rating | 30A |
| Flammability Rating | UL94 V-0 |
| Height | 51mm |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 86.5mm |
| Material | Polyamide |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Mount | DIN Rail |
| Number of Levels | 1 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Ways | 2 |
| Package Quantity | 1 |
| Series | CLIPLINE ST |
| Terminal Width | 8.2mm |
| Voltage | 300V |
| Voltage Rating | 400V |
| Weight | 0.745339oz |
| Width | 8.2mm |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Gauge | 10AWG |
| RoHS | Compliant |
