Modular terminal block featuring a 2-row, 1-deck configuration with 2 positions and 2 poles. Rated for 24A and 32A maximum current, with a 600V/1kV voltage rating. Constructed with Nylon insulation and a UL94 V-0 flammability rating. Accommodates wire gauges from 12AWG to 26AWG via screw termination. Approvals include CSA, VDE, cULus, UL, CB, and EAC.
Voltage600V
Current20A
Voltage Rating1kV
Current Rating32A
Quick Jump:
Technical Specifications
Phoenix Contact 3044089 technical specifications.
General
| Approvals | CSA, VDE, cULus, UL, CB, EAC |
| Color | Blue |
| Current | 20A |
| Current Rating | 32A |
| Depth | 5.2mm |
| Flammability Rating | UL94 V-0 |
| Height | 55mm |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 47.7mm |
| Max Current Rating | 32A |
| Max Supply Voltage | 1kV |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CLIPLINE UT |
| Terminal Width | 5.2mm |
| Termination | Screw |
| Voltage | 600V |
| Voltage Rating | 1kV |
| Weight | 0.258205oz |
| Width | 5.2mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 12AWG |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3044089 Datasheet
Download the complete datasheet for Phoenix Contact 3044089 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

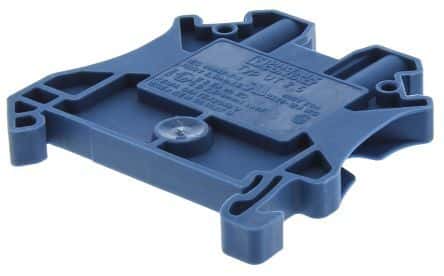

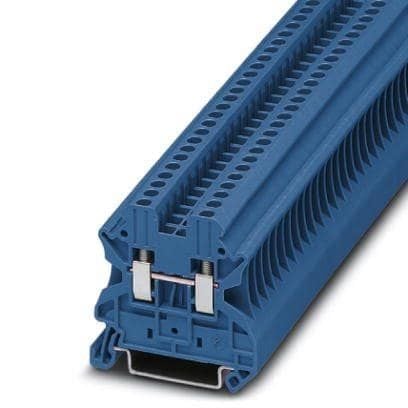

Product Images
