Modular terminal block with 2 poles and 2 positions, featuring a straight, 2-row configuration. Rated for 41A maximum current and 1kV maximum supply voltage, with a 30A continuous current rating. Accommodates wire gauges from 10AWG to 26AWG via screw termination. Constructed with blue Nylon insulation, achieving UL94 V-0 flammability rating. Approvals include CSA, VDE, cULus, UL, CB, and EAC.
Voltage600V
Current30A
Voltage Rating1kV
Current Rating32A
Quick Jump:
Technical Specifications
Phoenix Contact 3044115 technical specifications.
General
| Approvals | CSA, VDE, cULus, UL, CB, EAC |
| Color | Blue |
| Current | 30A |
| Current Rating | 32A |
| Depth | 6.2mm |
| Flammability Rating | UL94 V-0 |
| Height | 55mm |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 47.7mm |
| Max Current Rating | 41A |
| Max Supply Voltage | 1kV |
| Number of Circuits | 1 |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 50 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CLIPLINE UT |
| Terminal Width | 6.2mm |
| Termination | Screw |
| Voltage | 600V |
| Voltage Rating | 1kV |
| Voltage Rating (AC) | 1kV |
| DC Rated Voltage | 800V |
| Weight | 0.316407oz |
| Width | 6.2mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3044115 Datasheet
Download the complete datasheet for Phoenix Contact 3044115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

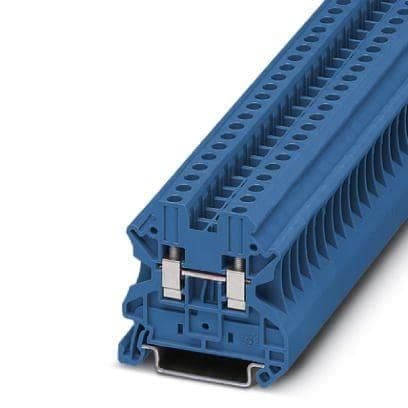

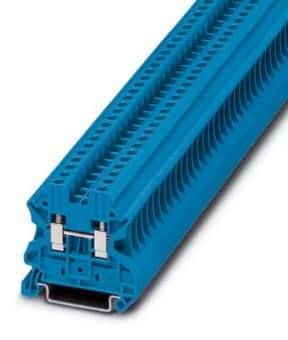

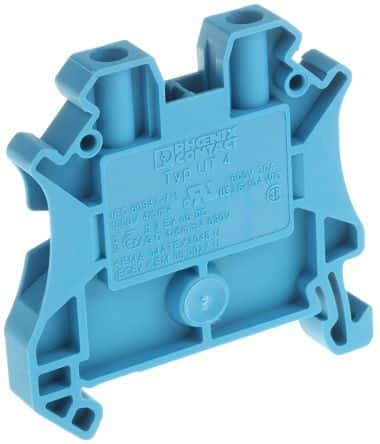

Product Images
