Modular terminal block featuring a straight, through-hole mount design with two positions and two poles. Rated for 600V and 30A operational current, with a maximum current rating of 41A and a voltage rating of 1kV. Constructed with black nylon insulation, it offers a terminal width of 6.2mm and accepts wire gauges from 10AWG to 26AWG. This RoHS compliant component boasts UL94 V-0 flammability rating and is approved by CSA, VDE, cULus, UL, CB, and EAC.
Voltage600V
Current30A
Voltage Rating1kV
Current Rating32A
Quick Jump:
Technical Specifications
Phoenix Contact 3045143 technical specifications.
General
| Approvals | CSA, VDE, cULus, UL, CB, EAC |
| Color | Black |
| Current | 30A |
| Current Rating | 32A |
| Flammability Rating | UL94 V-0 |
| Height | 55mm |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 47.7mm |
| Max Current Rating | 41A |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Contacts | 2 |
| Number of Levels | 1 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 50 |
| RoHS Compliant | Yes |
| Series | CLIPLINE UT |
| Terminal Width | 6.2mm |
| Termination | Screw |
| Voltage | 600V |
| Voltage Rating | 1kV |
| Weight | 0.31288oz |
| Width | 6.2mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Gauge | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3045143 Datasheet
Download the complete datasheet for Phoenix Contact 3045143 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

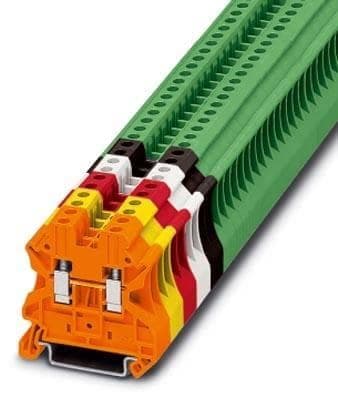

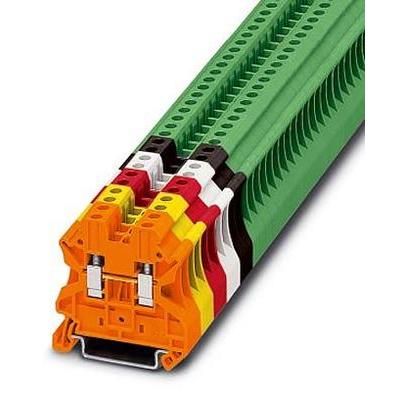

Product Images
