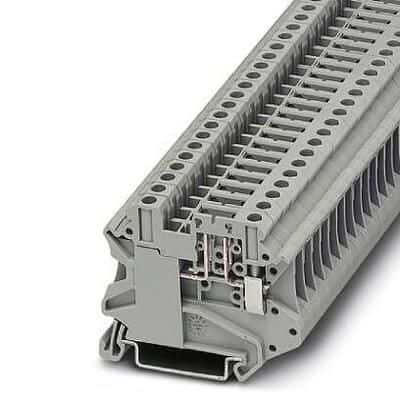

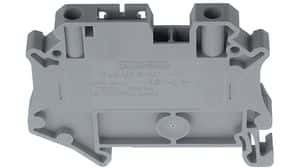

2-position, single-level disconnect terminal block featuring screw termination for DIN rail mounting. Rated for 20A and 500V, with a continuous current of 16A. Constructed with grey Nylon insulation, achieving UL94 V-0 flammability rating. Accommodates wire gauges from 10AWG to 26AWG. Approvals include CSA, cULus, UL, and EAC.
Voltage300V
Current16A
Voltage Rating500V
Current Rating20A
Quick Jump:
Technical Specifications
Phoenix Contact 3046168 technical specifications.
General
Approvals
CSA, cULus, UL, EAC
Color
Grey
Current
16A
Current Rating
20A
Flammability Rating
UL94 V-0
Height
55mm
Insulation Material
Nylon
Length
57.8mm
Mount
Through Hole
Number of Levels
1
Number of Poles
2
Number of Positions
2
Package Quantity
50
RoHS Compliant
Yes
Series
UT
Terminal Width
6.2mm
Termination
Screw
Voltage
300V
Voltage Rating
500V
Weight
0.481137oz
Width
6.2mm
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
10AWG
Wire/Cable Gauge
10AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 3046168 Datasheet
Download the complete datasheet for Phoenix Contact 3046168 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
