Modular terminal block featuring a 2-row, 1-deck configuration with 2 positions per level. Rated for 17.5A maximum current and 400V voltage, it accepts wire gauges from 14AWG to 30AWG via screw termination. This grey, straight-orientation component mounts to DIN rail and boasts UL94 V-0 flammability. Approvals include UL, CSA, and EAC, with RoHS compliance.
Voltage300V
Current15A
Voltage Rating400V
Current Rating17.5A
Quick Jump:
Technical Specifications
Phoenix Contact 3100305 technical specifications.
General
Approvals
UL, CSA, EAC
Color
Grey
Current
15A
Current Rating
17.5A
Depth
4.2mm
Flammability Rating
UL94 V-0
Housing Color
Grey
Insulation Material
Nylon
Lead Free
Lead Free
Length
22mm
Max Current Rating
17.5A
Max Supply Voltage
400V
Mount
DIN Rail
Number of Circuits
1
Number of Contacts
2
Number of Levels
1
Number of Poles
2
Number of Positions
2
Number of Positions Per Level
1
Number of Rows
2
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CLIPLINE MT
Terminal Width
4.2mm
Termination
Screw
Voltage
300V
Voltage Rating
400V
DC Rated Voltage
400V
Weight
0.081694oz
Width
4.2mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
14AWG
Wire/Cable Gauge
26AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 3100305 Datasheet
Download the complete datasheet for Phoenix Contact 3100305 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

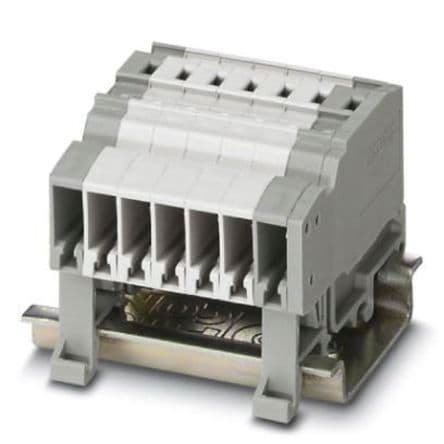

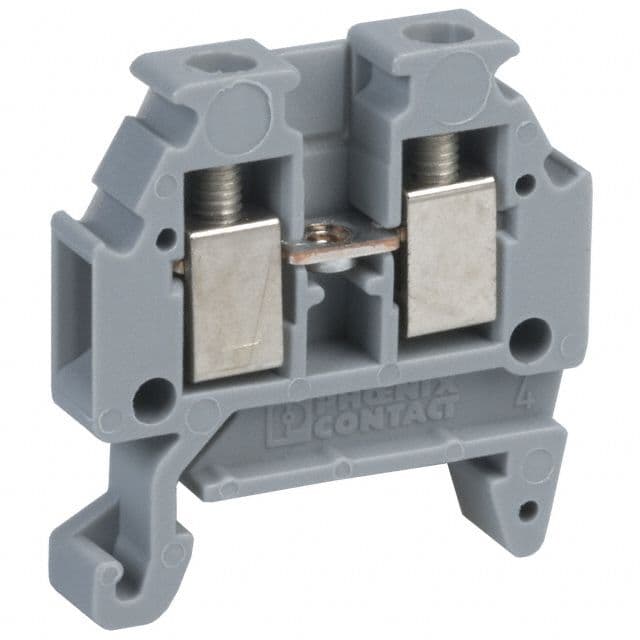

Product Images
