Modular terminal block with 2 poles and 2 positions, designed for 10mm² wire capacity. Features a 8.2mm pitch and screw termination for secure connections. Rated for 30A current and 300V voltage, with an insulation material of Nylon and a flammability rating of UL94 V-0. Approvals include CSA, cULus, UL, and EAC, ensuring broad application compatibility. This RoHS compliant component is lead-free and suitable for wire gauges from 8AWG to 26AWG.
Voltage300V
Current30A
Voltage Rating250V
Current Rating30A
Quick Jump:
Technical Specifications
Phoenix Contact 3118203 technical specifications.
General
| Approvals | CSA, cULus, UL, EAC |
| Color | Black |
| Current | 30A |
| Current Rating | 30A |
| Flammability Rating | UL94 V-0 |
| Fuse Size | N/A |
| Height | 52mm |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 64mm |
| Number Of Connectors | 2 |
| Number of Levels | 1 |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Packaging | Bulk |
| Pitch | 8.2mm |
| RoHS Compliant | Yes |
| Series | UK |
| Terminal Width | 8.2mm |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 250V |
| Weight | 0.729466oz |
| Width | 8.2mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 8AWG |
| Wire/Cable Gauge | 8AWG |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 3118203 Datasheet
Download the complete datasheet for Phoenix Contact 3118203 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

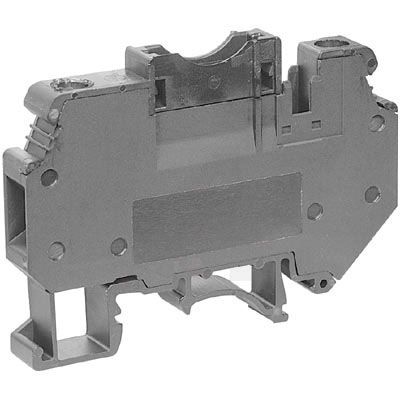

Product Images
