Right-angle, male D-subminiature connector with 15 positions and 3 rows, designed for signal applications. Features a shielded, free-hanging, cable mount configuration with screw termination. Rated for 1A current and 48V AC, operating within a temperature range of -20°C to 75°C. This lead-free and RoHS-compliant component offers a robust interconnect solution.
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Phoenix Contact 5604602 technical specifications.
General
| Contact Type | Signal |
| Current Rating | 1A |
| Features | Shielded |
| Gender | Male |
| Lead Free | Lead Free |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -20°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | SUBCON |
| Termination | Screw |
| Voltage Rating (AC) | 48V |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 5604602 Datasheet
Download the complete datasheet for Phoenix Contact 5604602 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

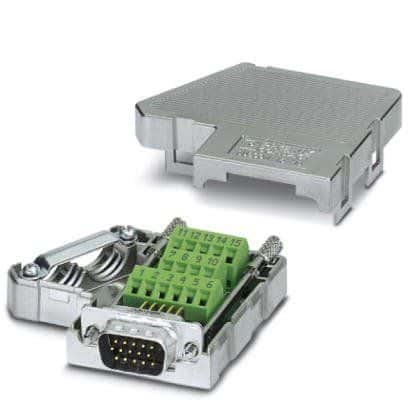

Product Images
