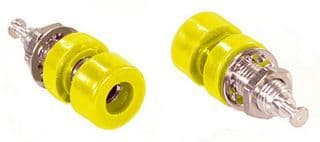

Female turret terminal for panel mounting, featuring a straight, single-position, single-contact design. Constructed with a polycarbonate and brass body, it offers brass contacts with tin and nickel plating. This device boasts a 15A current rating and a 2.5kV voltage rating, with AC and DC voltage ratings of 30V and 60V respectively. The yellow housing is made of polycarbonate, and the mating end is insulated.
Voltage Rating2.5kV
Current Rating15A
MountingPanel
Quick Jump:
Technical Specifications
Pomona Electronics 1581-4 technical specifications.
General
Body Material
PC, Polycarbonate, Brass
Color
Yellow
Contact Material
Brass
Contact Plating
Tin, Nickel
Current Rating
15A
Diameter
4.22mm
Gender
Female
Housing Color
Yellow
Insulation
Mating End Insulated
Insulation Material
Polycarbonate
Lead Free
Lead Free
Length
1.22inch
Max Current Rating
15A
Mount
Panel
Number of Contacts
1
Number of Ports
1
Number of Positions
1
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Turret
Voltage Rating
2.5kV
Voltage Rating (AC)
30V
DC Rated Voltage
60V
Compliance
RoHS
Compliant
Datasheet
Pomona Electronics 1581-4 Datasheet
Download the complete datasheet for Pomona Electronics 1581-4 to view detailed technical specifications.
