Coaxial cable assembly featuring RG58C/U construction with a 20AWG conductor, offering 50-ohm impedance. This 0.61m (24-inch) assembly connects two BNC male plug connectors, providing a shielded, lead-free solution. Rated for 500V AC/DC, it operates within a temperature range of -40°C to 85°C and is UL and CE approved.
MountingCable
Quick Jump:
Technical Specifications
Pomona Electronics 2249-C-24 technical specifications.
General
| Approvals | UL, CE |
| Color | Black |
| Connector Type A | BNC, Plug |
| Connector Type B | BNC, Plug |
| Features | Shielded |
| Gender | Male to Male |
| Gender Type A | Male |
| Gender Type B | Male |
| Impedance | 50R |
| Lead Free | Lead Free |
| Lead Length | 600mm |
| Length | 24inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 500V |
| Mount | Cable |
| Package Quantity | 6 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 500V |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 2249-C-24 Datasheet
Download the complete datasheet for Pomona Electronics 2249-C-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

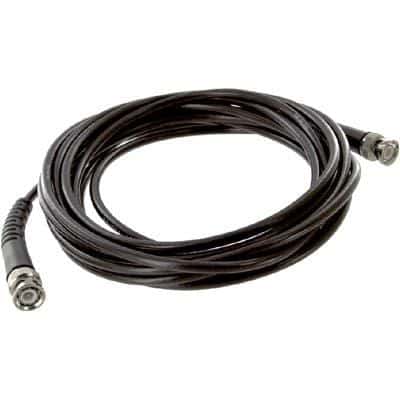

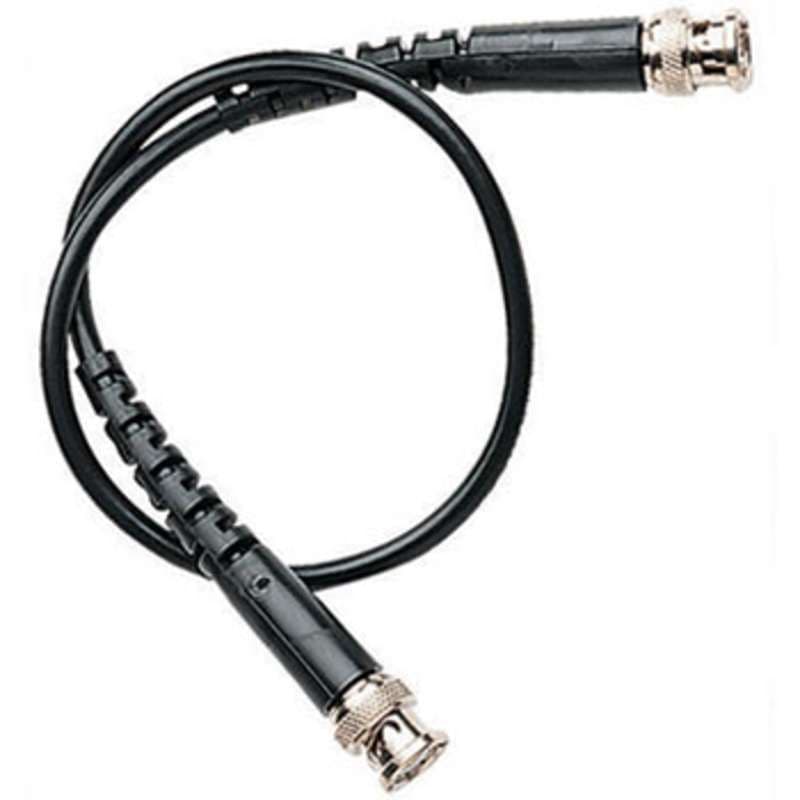

Product Images
