Shielded, male-to-male coaxial interconnection device featuring BNC plug connectors at both ends. Offers 50 Ohm impedance and a 60-inch length, suitable for 20 AWG coaxial cable. Constructed with brass contacts plated in gold for reliable conductivity. Rated for 500V AC/DC and operates within a temperature range of -40°C to 85°C. UL and CE approved, RoHS compliant.
MountingCable
Quick Jump:
Technical Specifications
Pomona Electronics 2249-C-60 technical specifications.
General
| Approvals | UL, CE |
| Color | Black |
| Connector Type A | BNC, Plug |
| Connector Type B | BNC, Plug |
| Contact Material | Brass |
| Contact Plating | Gold |
| Features | Shielded |
| Gender | Male to Male |
| Gender Type A | Male |
| Gender Type B | Male |
| Impedance | 50R |
| Lead Free | Lead Free |
| Length | 60inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 500V |
| Mount | Cable |
| Package Quantity | 500 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 500V |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Coaxial |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 2249-C-60 Datasheet
Download the complete datasheet for Pomona Electronics 2249-C-60 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

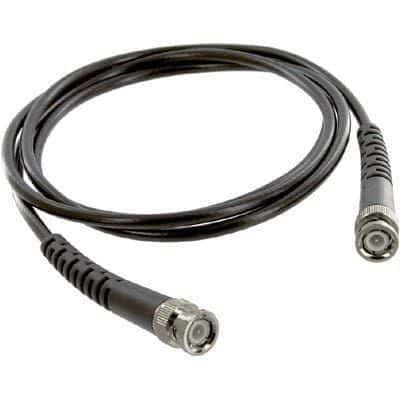

Product Images
