Technical Specifications
Pomona Electronics 2249-E-12 technical specifications.
General
| Approvals | UL, CE |
| Color | Black |
| Connector Type A | BNC, Plug |
| Connector Type B | BNC, Plug |
| Contact Material | Brass |
| Features | Shielded |
| Gender | Male to Male |
| Gender Type A | Male |
| Gender Type B | Male |
| Impedance | 75R |
| Lead Free | Lead Free |
| Length | 12inch |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 500V |
| Mount | Cable |
| Package Quantity | 2 |
| RoHS Compliant | Yes |
| DC Rated Voltage | 500V |
| Wire/Cable Gauge | 23AWG |
| Wire/Cable Type | Coaxial |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 2249-E-12 Datasheet
Download the complete datasheet for Pomona Electronics 2249-E-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

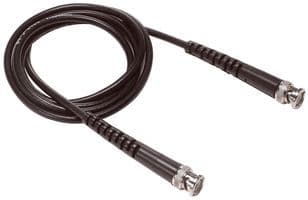

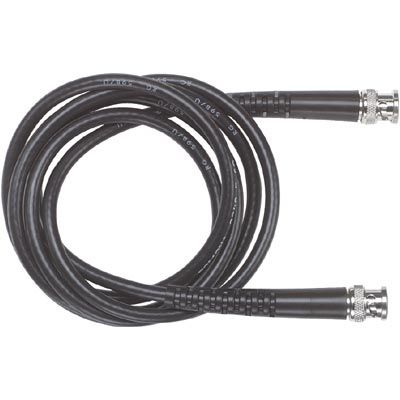

Product Images
