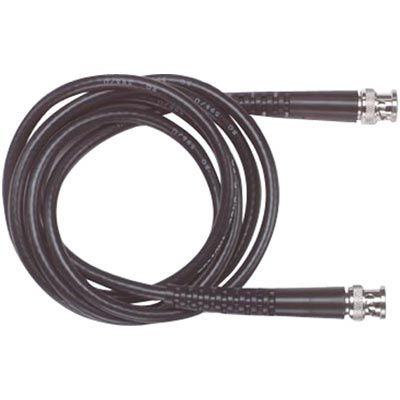

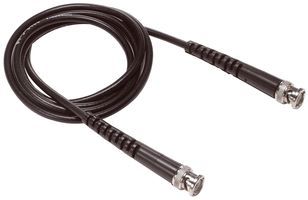

This BNC to BNC coaxial cable assembly features a shielded design with a gold-plated brass contact and a 75 ohm impedance. It is constructed with a 23 AWG wire and has a maximum operating temperature of 60°C. The assembly is lead-free and RoHS compliant, meeting UL and CE approval standards. It is available in a package quantity of two and has a length of 240 inches.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pomona Electronics 2249-E-240 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Pomona Electronics 2249-E-240 technical specifications.
| Approvals | UL, CE |
| Color | Black |
| Connector Type A | BNC, Plug |
| Connector Type B | BNC, Plug |
| Contact Material | Brass |
| Contact Plating | Gold |
| Features | Shielded |
| Gender | Male to Male |
| Gender Type A | Male |
| Gender Type B | Male |
| Impedance | 75R |
| Lead Free | Lead Free |
| Length | 240inch |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Package Quantity | 2 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 500V |
| Wire/Cable Gauge | 23AWG |
| RoHS | Compliant |
