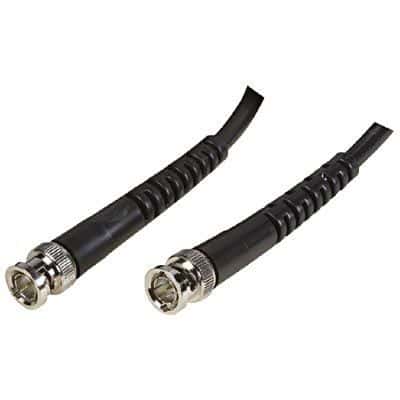

75 Ohm BNC Male to Male coaxial cable interconnection device, featuring gold-plated brass contacts for optimal conductivity. This shielded device supports a maximum operating temperature of 60°C and a minimum of -40°C, with a voltage rating of 500V AC/DC. Designed for 23AWG coaxial cable, it is UL and CE approved, RoHS compliant, and lead-free.
Package300
MountingCable
Quick Jump:
Technical Specifications
Pomona Electronics 2249-E-300 technical specifications.
General
Approvals
UL, CE
Package/Case
300
Color
Black
Connector Type A
BNC, Plug
Connector Type B
BNC, Plug
Contact Material
Brass
Contact Plating
Gold
Features
Shielded
Gender
Male to Male
Gender Type A
Male
Gender Type B
Male
Impedance
75R
Lead Free
Lead Free
Length
300inch
Max Operating Temperature
60°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
500V
Mount
Cable
Package Quantity
2
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
500V
Wire/Cable Gauge
23AWG
Wire/Cable Type
Coaxial
Compliance
RoHS
Compliant
Datasheet
Pomona Electronics 2249-E-300 Datasheet
Download the complete datasheet for Pomona Electronics 2249-E-300 to view detailed technical specifications.
