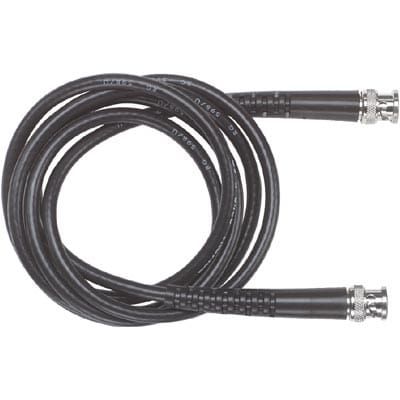

Coaxial cable assembly featuring BNC male to BNC male connectors, offering 75-ohm impedance and a 1.524m (60-inch) length. Constructed with 23AWG coaxial wire and PVC insulation, this shielded assembly boasts brass contacts with gold plating for reliable signal transmission. Rated for 500V AC/DC and operating within a -40°C to 60°C temperature range, it is UL and CE approved, RoHS compliant, and lead-free.
MountingCable
Quick Jump:
Technical Specifications
Pomona Electronics 2249-E-60 technical specifications.
General
| Approvals | UL, CE |
| Color | Black |
| Connector Type A | BNC, Plug |
| Connector Type B | BNC, Plug |
| Contact Material | Brass |
| Contact Plating | Gold |
| Features | Shielded |
| Gender | Male to Male |
| Gender Type A | Male |
| Gender Type B | Male |
| Impedance | 75R |
| Insulation Material | PVC |
| Lead Free | Lead Free |
| Length | 60inch |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 500V |
| Mount | Cable |
| Package Quantity | 2 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 500V |
| Wire/Cable Gauge | 23AWG |
| Wire/Cable Type | Coaxial |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 2249-E-60 Datasheet
Download the complete datasheet for Pomona Electronics 2249-E-60 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
