Pomona Electronics
2249-K-24
POMONA 2249-K-24 RF / Coaxial Cable Assembly, BNC Straight Plug, BNC Straight Plug, 24 ", 60 cm, Black
MountingCable
Quick Jump:
Technical Specifications
Pomona Electronics 2249-K-24 technical specifications.
General
Approvals
UL, CE
Color
Black
Connector Type A
BNC, Plug
Connector Type B
BNC, Plug
Features
Shielded
Gender
Male to Male
Gender Type A
Male
Gender Type B
Male
Impedance
50R
Lead Free
Lead Free
Lead Length
600mm
Length
24inch
Max Operating Temperature
75°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
500V
Mount
Cable
Package Quantity
2
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
60V
Wire/Cable Gauge
26AWG
Wire/Cable Type
Coaxial
Compliance
RoHS
Compliant
Datasheet
Pomona Electronics 2249-K-24 Datasheet
Download the complete datasheet for Pomona Electronics 2249-K-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

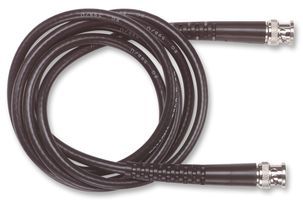

Product Images
