RF BNC receptacle with a straight, female configuration, designed for panel mounting. Features a brass body with nickel plating and a PTFE dielectric. Center contact is gold-plated copper, ensuring 50 Ohm impedance up to 4GHz. Operates within a temperature range of -65°C to 165°C and rated for 500V. Termination is via solder.
Frequency4GHz
Voltage Rating500V
MountingPanel, Bulkhead, Rear Side Nut
PolarityStandard
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Pomona Electronics 4160 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Pomona Electronics 4160 technical specifications.
General
| Body Material | Brass |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Frequency | 4GHz |
| Gender | Female |
| Housing Color | Silver |
| Impedance | 50R |
| Insulation Material | Polytetrafluoroethylene |
| Lead Free | Lead Free |
| Length | 27.18mm |
| Max Frequency | 4GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Panel, Bulkhead, Rear Side Nut |
| Number of Ports | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Nickel |
| Polarity | Standard |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 4160 Datasheet
Download the complete datasheet for Pomona Electronics 4160 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

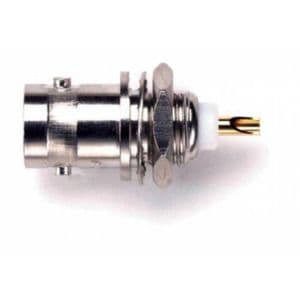

Product Images
