Coaxial cable assembly featuring a BNC male connector on one end and free ends on the other. This 149mm assembly utilizes 20AWG PVC insulated wire with a brass body and copper, gold-plated contacts. Rated for 500V, it operates between -131°C and 55°C and is RoHS compliant.
Voltage Rating500V
Quick Jump:
Technical Specifications
Pomona Electronics 4970 technical specifications.
General
| Approvals | CE |
| Body Material | Brass |
| Color | Black, Red |
| Connector Type A | BNC, Plug |
| Connector Type B | Free Ends |
| Contact Material | Copper, Gold |
| Contact Plating | Nickel, Gold |
| Gender Type A | Male |
| Insulation Material | PVC |
| Lead Free | Lead Free |
| Lead Length | 149mm |
| Material | Brass, Gold |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | 131°C |
| Package Quantity | 6 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 4970 |
| Voltage Rating | 500V |
| Voltage Rating (AC) | 500V |
| DC Rated Voltage | 500V |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | PVC |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 4970 Datasheet
Download the complete datasheet for Pomona Electronics 4970 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

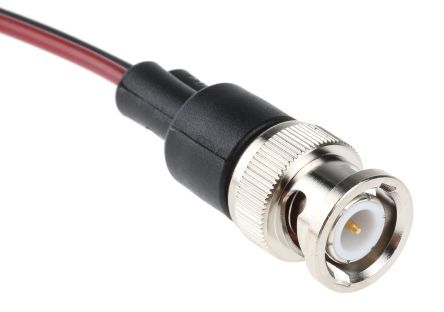

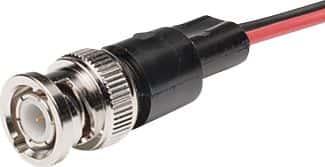

Product Images
