24-inch lead length interconnection device featuring a BNC plug connector and a mini hook clip. Constructed with a brass body and copper contacts, this device utilizes PVC insulation in black and red. Rated for 300V AC/DC, it supports a maximum operating temperature of 50°C and is RoHS compliant. Designed for cable mounting, it accommodates a 0.195-inch wire/cable diameter and 20AWG wire gauge.
Package300
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Pomona Electronics 5187-C-24 technical specifications.
General
Body Material
Brass
Package/Case
300
Color
Black, Red
Connector Type A
BNC, Plug
Connector Type B
Mini Hook, Clip
Contact Material
Copper
Insulation Color
Black
Insulation Material
PVC
Lead Free
Lead Free
Lead Length
24inch
Length
24inch
Max Operating Temperature
50°C
Min Operating Temperature
122°C
Max Voltage Rating (AC)
300V
Mount
Cable
Package Quantity
5
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Minigrabber® 5187
Stranding
41 x 36
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Wire/Cable Diameter
0.195inch
Wire/Cable Gauge
20AWG
Compliance
RoHS
Compliant
Datasheet
Pomona Electronics 5187-C-24 Datasheet
Download the complete datasheet for Pomona Electronics 5187-C-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

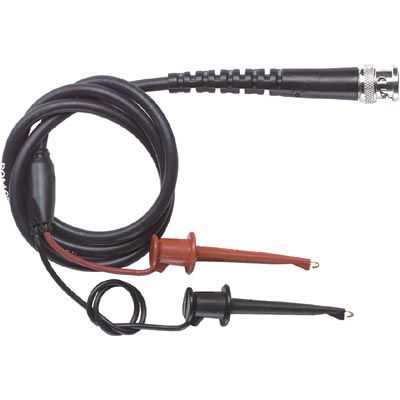

Product Images
