This interconnection device features two plug connectors, each with brass contacts plated in nickel. Rated for 1kV AC/DC and a maximum current of 10A, it utilizes 18AWG wire with a 1.22m lead length. The device is constructed with black and red silicone insulation and is RoHS compliant.
Voltage Rating1kV
Current Rating10A
MountingStandard
Quick Jump:
Technical Specifications
Pomona Electronics 5519A technical specifications.
General
| Color | Black, Red |
| Connector Type A | Plug |
| Connector Type B | Plug |
| Contact Material | Brass |
| Contact Plating | Nickel |
| Current Rating | 10A |
| Height | 38.1mm |
| Insulation Material | Silicone |
| Lead Free | Lead Free |
| Lead Length | 1.22m |
| Length | 1.2192m |
| Max Current Rating | 10A |
| Max Voltage Rating (AC) | 1kV |
| Max Voltage Rating (DC) | 1kV |
| Mount | Standard |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 5519A |
| Voltage Rating | 1kV |
| DC Rated Voltage | 1kV |
| Weight | 102.511876g |
| Width | 101.6mm |
| Wire/Cable Gauge | 18AWG |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 5519A Datasheet
Download the complete datasheet for Pomona Electronics 5519A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

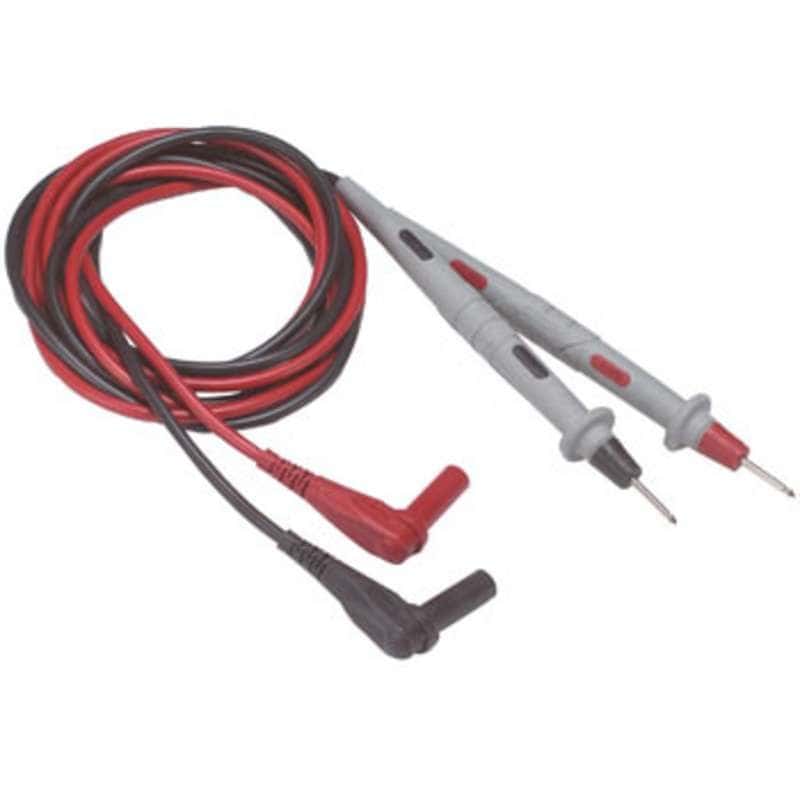

Product Images
