This interconnection device features a plug connector terminating in a clip, designed for cable mounting. It boasts copper contacts with gold plating, rated for 5A current and 45V DC voltage. The lead length extends to 673mm (26 inches), and the component is RoHS compliant and lead-free.
Voltage Rating45V
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
Pomona Electronics 5940 technical specifications.
General
| Approvals | CE |
| Connector Type A | Plug |
| Connector Type B | Clip |
| Contact Material | Copper, Gold |
| Contact Plating | Gold |
| Current Rating | 5A |
| Lead Free | Lead Free |
| Lead Length | 673mm |
| Length | 26inch |
| Mount | Cable |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 5940 |
| Voltage Rating | 45V |
| DC Rated Voltage | 45V |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 5940 Datasheet
Download the complete datasheet for Pomona Electronics 5940 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

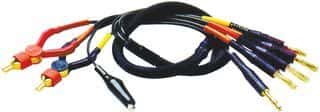

Product Images
