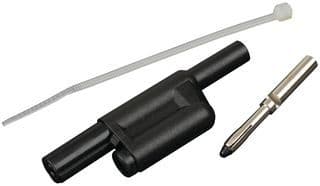

Insulated male interconnection device featuring a straight, free-hanging or cable mount orientation. Constructed with a copper body and contacts made of copper, brass, and beryllium copper alloy, all plated with nickel. Rated for 1kV DC and 20A current, it operates within a temperature range of -10°C to 55°C and accepts 18AWG wire. This RoHS compliant component is lead-free and terminates via solder.
Voltage Rating1kV
Current Rating20A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Pomona Electronics 6721-0 technical specifications.
General
| Body Material | Copper |
| Color | Black |
| Contact Material | Copper, Brass, BERYLLIUM COPPER ALLOY |
| Contact Plating | Nickel |
| Current Rating | 20A |
| Gender | Male |
| Housing Color | Black |
| Insulation | Insulated |
| Lead Free | Lead Free |
| Length | 2.32inch |
| Max Current Rating | 20A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Voltage Rating | 1kV |
| DC Rated Voltage | 1kV |
| Wire/Cable Gauge | 18AWG |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 6721-0 Datasheet
Download the complete datasheet for Pomona Electronics 6721-0 to view detailed technical specifications.
