Panel-mount female interconnection device featuring brass contacts with nickel plating, rated for 1kV DC and 1kV AC. Constructed with a black nylon/polyamide body, this device offers screw termination and insulated mating end. It supports a current rating of 36A and is RoHS compliant.
Voltage Rating1kV
Current Rating36A
MountingPanel
Quick Jump:
Technical Specifications
Pomona Electronics 72930-0 technical specifications.
General
| Body Material | Nylon, Polyamide |
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Nickel |
| Current Rating | 36A |
| Gender | Female |
| Insulation | Mating End Insulated |
| Lead Free | Lead Free |
| Mount | Panel |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Screw |
| Voltage Rating | 1kV |
| DC Rated Voltage | 1kV |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 72930-0 Datasheet
Download the complete datasheet for Pomona Electronics 72930-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

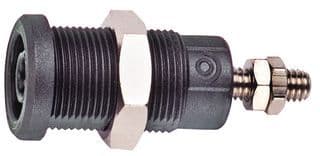

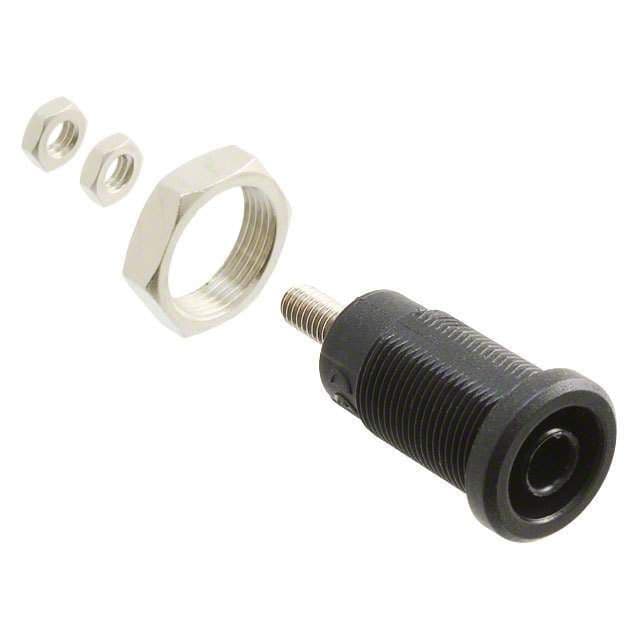

Product Images
