Frequency18GHz
PackageSMA
MountingFree Hanging
PolarityStandard
Quick Jump:
Technical Specifications

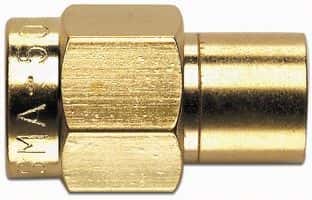

Pomona Electronics 72975 technical specifications.
General
Body Material
Brass
Body Plating
Gold
Package/Case
SMA
Contact Material
Brass
Contact Plating
Gold
Dielectric Material
PTFE
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Length
14.4mm
Max Frequency
18GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging
Orientation
Straight
Package Quantity
5
Plating
Gold
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Quick Connect
Compliance
RoHS
Compliant
Datasheet
Pomona Electronics 72975 Datasheet
Download the complete datasheet for Pomona Electronics 72975 to view detailed technical specifications.
