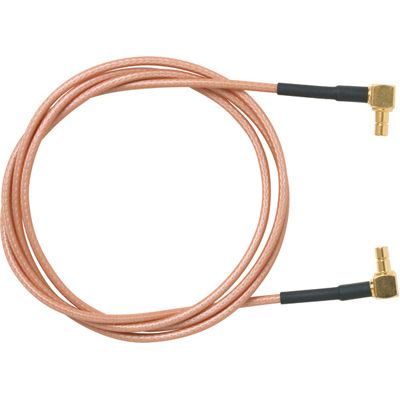

This SMB male to male shielded RF cable assembly has a maximum operating frequency of 3GHz and a maximum operating temperature of 165°C. The assembly is constructed from brass with a gold plating and features a FEP insulation material. It is RoHS compliant and suitable for use in high-frequency applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pomona Electronics 73073-BB-12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Pomona Electronics 73073-BB-12 technical specifications.
| Package/Case | SMB |
| Color | Clear, Brown |
| Connector Type A | SMB, Male Pin |
| Connector Type B | SMB, Male Pin |
| Contact Material | Brass |
| Contact Plating | Gold |
| Features | Shielded |
| Gender | Male to Male |
| Impedance | 50R |
| Insulation Material | FEP |
| Length | 12inch |
| Max Frequency | 3GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| RoHS | Compliant |
