15A, 60V DC rated test leads featuring nickel-plated copper connectors for reliable conductivity. These 60-inch (1.524m) leads utilize 18AWG PVC insulated wire with a 0.144-inch diameter, offering flexibility and durability. Designed for oscilloscope and multimeter applications, the black leads are constructed from copper, brass, and polypropylene, ensuring robust performance. The product is RoHS compliant and lead-free.
Voltage Rating60V
Current Rating15A
MountingCable
Quick Jump:
Technical Specifications
Pomona Electronics B-60-0 technical specifications.
General
| Color | Black |
| Connector Type A | Plug |
| Connector Type B | Plug |
| Contact Material | Copper |
| Contact Plating | Nickel |
| Current Rating | 15A |
| Insulation Color | Black |
| Insulation Material | PVC |
| Lead Free | Lead Free |
| Lead Length | 1.524m |
| Length | 60inch |
| Material | Copper, Brass, Polypropylene |
| Max Current Rating | 15A |
| Max Voltage Rating (DC) | 6.03kV |
| Mount | Cable |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | B |
| Stranding | 65 x 36 |
| Voltage Rating | 60V |
| Voltage Rating (AC) | 30V |
| DC Rated Voltage | 60V |
| Wire/Cable Diameter | 0.144inch |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | PVC |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics B-60-0 Datasheet
Download the complete datasheet for Pomona Electronics B-60-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

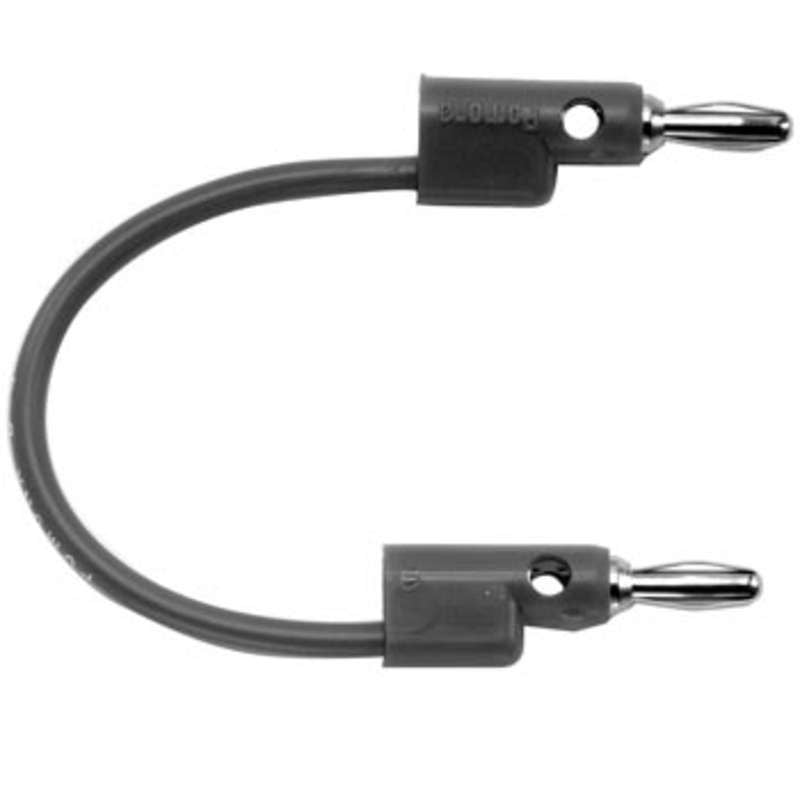

Product Images
