Surface mount switching regulator with adjustable output voltage up to 5.8V and 750mA output current. Features a 132kHz switching frequency, 60% maximum duty cycle, and operates from an 85V to 265V AC input range. This flyback topology power management IC is housed in a PDSO7 package and supports a maximum power dissipation of 9W. It offers a wide operating temperature range from -40°C to 150°C and is RoHS compliant.
Frequency132kHz
PackageSMD/SMT
Current250uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Power Integrations LNK364GN technical specifications.
General
Package/Case
SMD/SMT
Frequency
132kHz
Height
3.68mm
Lead Free
Lead Free
Length
9.83mm
Max Duty Cycle
60%
Max Input Voltage (AC)
265V
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
750mA
Max Power Dissipation
9W
Max Supply Voltage (AC)
265V
Min Supply Voltage (AC)
85V
Min Supply Voltage
50V
Mount
Surface Mount
Number of Outputs
1
Output Current
750mA
Output Type
Adjustable
Output Voltage
5.8V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LinkSwitch®-XT
Supply Current
250uA
Termination
SMD/SMT
Topology
Flyback
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Power Integrations LNK364GN Datasheet
Download the complete datasheet for Power Integrations LNK364GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

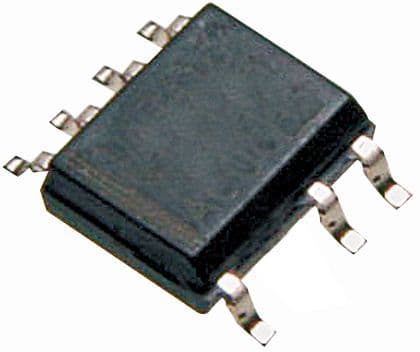

Product Images
