Frequency66kHz
PackageSO
MountingSurface Mount
Quick Jump:
Technical Specifications
Power Integrations LYT0004D-TL technical specifications.
General
Package/Case
SO
Frequency
66kHz
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
139mA
Max Output Voltage
700V
Min Output Voltage
-300mV
Max Supply Current
173uA
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Operating Frequency
66 kHz
Output Current
139mA
Output Current per Channel
225mA
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
LYTSwitch™-0
Topology
Flyback, SEPIC, Buck-Boost
Compliance
RoHS
Compliant
Datasheet
Power Integrations LYT0004D-TL Datasheet
Download the complete datasheet for Power Integrations LYT0004D-TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

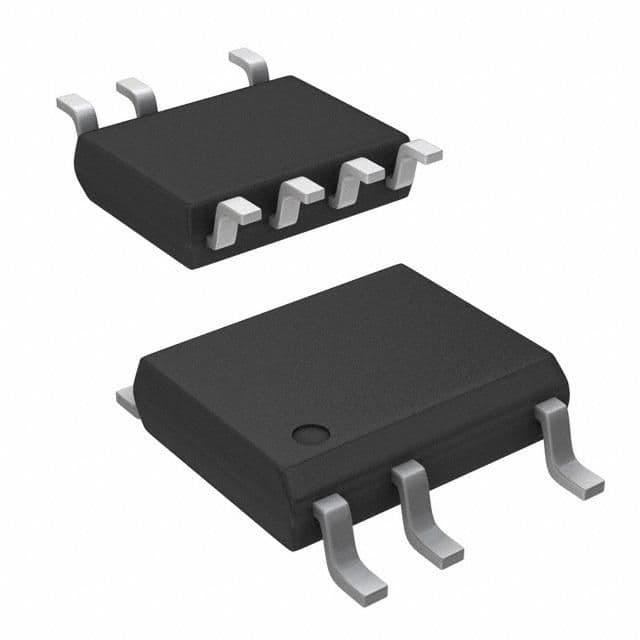

Product Images
