High-performance switching regulator IC for DC/DC conversion, featuring a current-mode control architecture. Operates with an input voltage range of 85VAC to 265VAC and delivers up to 21.5W output power. Integrated fault protection includes over-voltage, over-temperature, and short-circuit capabilities. Designed for through-hole mounting in a DIP package, this flyback topology regulator offers a maximum switching frequency of 140kHz and a 65% maximum duty cycle.
PackageDIP
MountingThrough Hole
Power21.5W
Quick Jump:
Technical Specifications
Power Integrations TNY278PN technical specifications.
General
Package/Case
DIP
Duty Cycle
65%
Fault Protection
Over Voltage, Over Temperature, Short Circuit
Lead Free
Lead Free
Max Duty Cycle
65%
Max Input Voltage (AC)
265V
Min Input Voltage (AC)
85V
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
28W
Max Supply Voltage (AC)
265V
Min Supply Voltage (AC)
85V
Mount
Through Hole
Number of Outputs
1
Operating Supply Current
445uA
Output Power
21.5W
Output Type
Adjustable
Output Voltage
12V
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TinySwitch®-III
Topology
Flyback
Weight
0.080001oz
Compliance
RoHS
Compliant
Datasheet
Power Integrations TNY278PN Datasheet
Download the complete datasheet for Power Integrations TNY278PN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

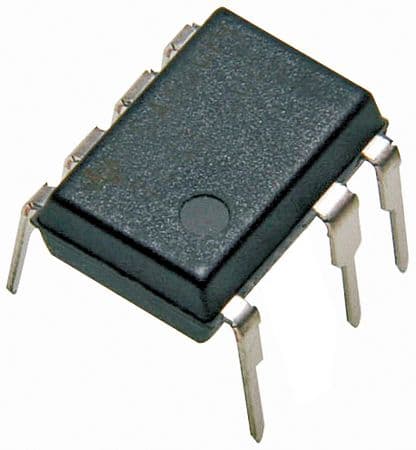

Product Images
