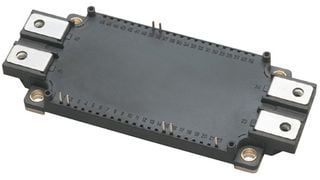

The Powerex CM400HX-24A is a high-power IGBT module with a collector-emitter breakdown voltage of 1.2kV and a maximum collector current of 400A. It features a standard input with an input capacitance of 66nF and is designed for operation at temperatures up to 150°C. The module is packaged in a bulk format and is RoHS compliant. It is also equipped with an NTC thermistor for temperature monitoring.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Powerex CM400HX-24A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Collector Emitter Breakdown Voltage | 1.2kV |
| Collector-emitter Voltage-Max | 2.6V |
| Input | Standard |
| Input Capacitance | 66nF |
| Max Collector Current | 400A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 2.45kW |
| Mount | Chassis Mount |
| NTC Thermistor | Yes |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | IGBTMOD™ |
| RoHS | Compliant |
Download the complete datasheet for Powerex CM400HX-24A to view detailed technical specifications.
