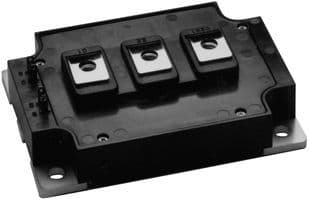

The CM450DY-24S is a high-power IGBT module from Powerex, featuring a collector-emitter breakdown voltage of 1.2kV and a maximum collector current of 410A. It has a maximum power dissipation of 3.33kW and operates within a temperature range of -40°C to 150°C. The module is packaged in a bulk format and is designed for chassis mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Powerex CM450DY-24S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Collector Emitter Breakdown Voltage | 1.2kV |
| Collector Emitter Saturation Voltage | 1.7V |
| Collector Emitter Voltage (VCEO) | 1.2kV |
| Collector-emitter Voltage-Max | 2.25V |
| Input | Standard |
| Input Capacitance | 45nF |
| Max Collector Current | 410A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 3.33kW |
| Mount | Chassis Mount |
| NTC Thermistor | No |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | IGBTMOD™ |
| RoHS | Not Compliant |
