8-contact, female, right-angle modular connector with a shielded, right-angle orientation. Features gold-plated bronze contacts and solder termination. Rated for 8mA current and operates between 0°C and 70°C. This telecom and datacom connector is RoHS compliant and includes 4 cores per jack.
Current Rating8mA
Quick Jump:
Technical Specifications
Pulse J00-0045NL technical specifications.
General
| Color | Green, Yellow |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 8mA |
| Depth | 21.59mm |
| Direction | Down |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 16.26mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Number of Contacts | 8 |
| Number of Cores per Jack | 4 |
| Number of Ports | 1 |
| Number of Positions Loaded | 8 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Pulse J00-0045NL Datasheet
Download the complete datasheet for Pulse J00-0045NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

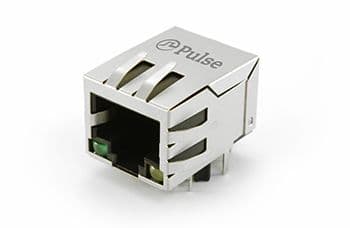

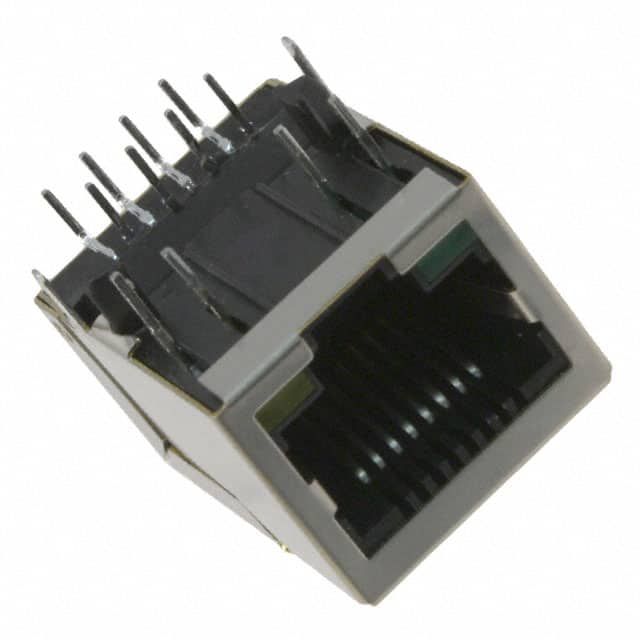

Product Images
