Shielded, right-angle modular connector with 8 contacts and 4 cores per jack. Features gold-plated bronze contacts and solder termination. Operating temperature range from 0°C to 70°C. RoHS compliant.
Quick Jump:
Technical Specifications
Pulse J00-0065NL technical specifications.
General
Color
Green, Yellow
Contact Material
Bronze
Contact Plating
Gold
Depth
21.59mm
Direction
Down
Gender
Female
Lead Free
Lead Free
Length
16.26mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Number of Contacts
8
Number of Cores per Jack
4
Number of Ports
1
Number of Positions Loaded
8
Number of Rows
1
Orientation
Right Angle
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Shielding
Shielded
Termination
Solder
Width
16.3mm
Compliance
RoHS
Compliant
Datasheet
Pulse J00-0065NL Datasheet
Download the complete datasheet for Pulse J00-0065NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

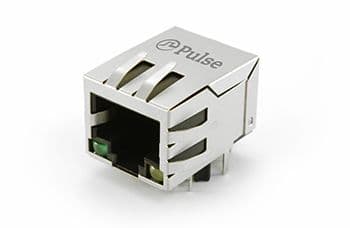

Product Images
