Shielded, right-angle RJ45 connector featuring 8 positions and 8 contacts, designed for through-hole mounting with a 2.54mm pitch. This female I/O connector offers gold-plated bronze contacts, supporting Cat 5/Cat 6 standards. It operates within a temperature range of 0°C to 70°C and is UL94 V-0 flammability rated. The connector is lead-free, RoHS compliant, and suitable for solder termination.
MountingThrough Hole
Quick Jump:
Technical Specifications
Pulse J0026D01NL technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Depth
21.59mm
Direction
Down
Flammability Rating
UL94 V-0
Gender
Female
Lead Free
Lead Free
Length
16.26mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Through Hole
Number of Contacts
8
Number of Cores per Jack
5
Number of Ports
1
Number of Positions Loaded
8
Number of Rows
1
Orientation
Right Angle
Package Quantity
30
Packaging
Tray
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
PULSEJACK™ J0
Shielding
Shielded
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Pulse J0026D01NL Datasheet
Download the complete datasheet for Pulse J0026D01NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

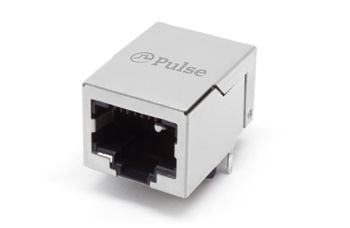

Product Images
